| Indoor unit: Cooling capacity | 24000Btu/h |
|---|---|
| Indoor unit: Sound pressure level (H) | 40 dB(A) |
| Indoor unit: Air flow | 1050m³ |
| Indoor unit: Rated frequency | 50Hz |
| Indoor unit: Weight | 13 kg |
| Indoor unit: Rated voltage | 220 – 240 V |

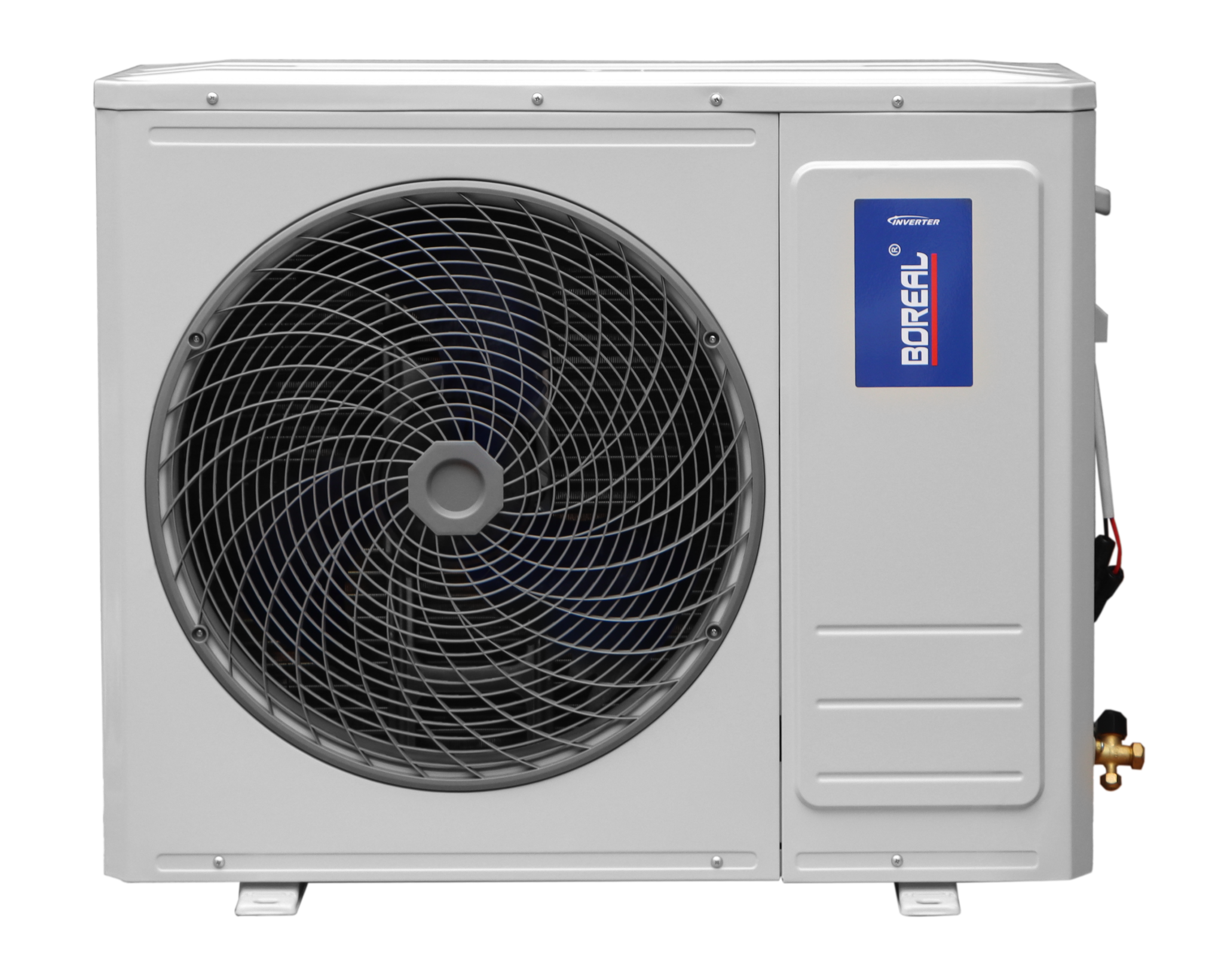

| Outdoor unit: Cooling capacity | 24000Btu/h |
| Outdoor unit: Refrigerant charge | 950 g |
| Outdoor unit: Nominal cooling input | 2500W |
| Outdoor unit: Cooling power input | 3,200 W |
| Outdoor unit: Humidity protection | ɪPX4 |
| External unit: Sound pressure level | 59dB(A) |
| Climate type | T1 |
| Outdoor unit: Excessive permissible operating pressure on suction side | 1.0 MPa |
| Outdoor unit: Excessive operating pressure allowed for discharge side | 3.5 MPa |
| External unit: Maximum allowable pressure | 3.5 MPa |
| Outdoor unit: Insulation | ɪ |
| Outdoor unit: Weight | 46 kg |
| Refrigerant type | R410A |
|
BSCR-24-AAA-AC/DC-INVERTER (HYBRID)Split Air Conditioners |
|
|
|       |
|
|
|
